Rubber Tyre Container Gantry Crane

Rubber type Container gantry crane applies to international standard container transporting, loading and unloading at the container yard and railway container depots.With stable performance,high efficiency and easy maintenance

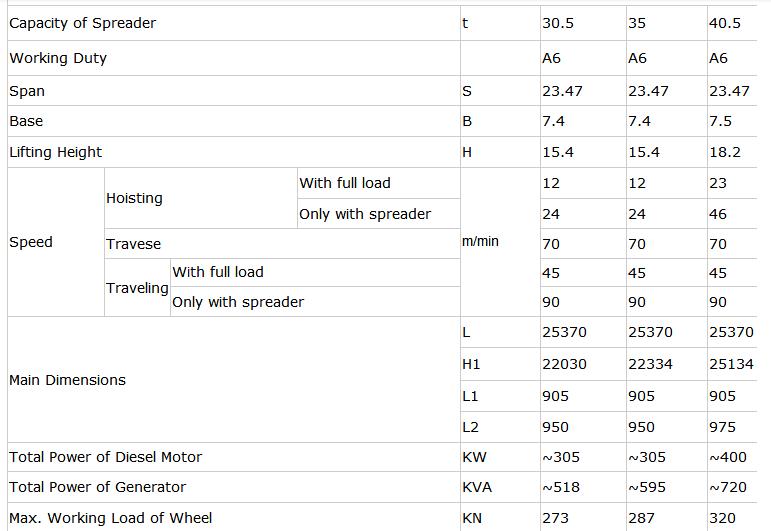

Main Parameter
  • Lifting weight:30.5~40.5t
  • span:23m
  • Lifting height:15~18m
  • Work class:A6
Nucleon(Xinxiang)Crane Co.,Ltd,
  • Certification Nucleon Crane has been audited by many international authority such as CE/ISO/SGS/BV/GOST/RTN/TUV and so on.
  • Packaging Details Our marine crane normal export package:Wooden pallet,Rack wooden,20' and 40' container,Nude or According to your demands.
  • Delivery Detail Shipped in 20 days after payment.
At present, when people select equipment for container storage yards, Rubber Tyred Gantry Crane ( RTG) has become their first selection.
Nucleon Container Gantry Crane 45t  is applicable to move, load and unload containers in rail station good yards, port, outside stores, etc. This type cranes use U frame, divedes into two types:
one is rail mounted gantry , the other is rubber tyre gantry crane . the clear space is bigger for containers move to sides. The whole crane moves on the rails mounted in ground or moves on the ground directly, more fast, more steady. Power supply is cable drum. The whole work duty is A6 and we can design non-standard according to your requirement.


Rubber tyre container gantry crane generally includes the following units: steel frame, hoisting mechnism, minimum slewing mechanism, and spreader anti-shaking mechanism, crane travel mechnism,turning mechnism, trolley traverse mechanism, container spreader, diesel generating sets, electrical equipment and other accessory equipments for safety.
