Mobile Boat Handing Gantry Crane

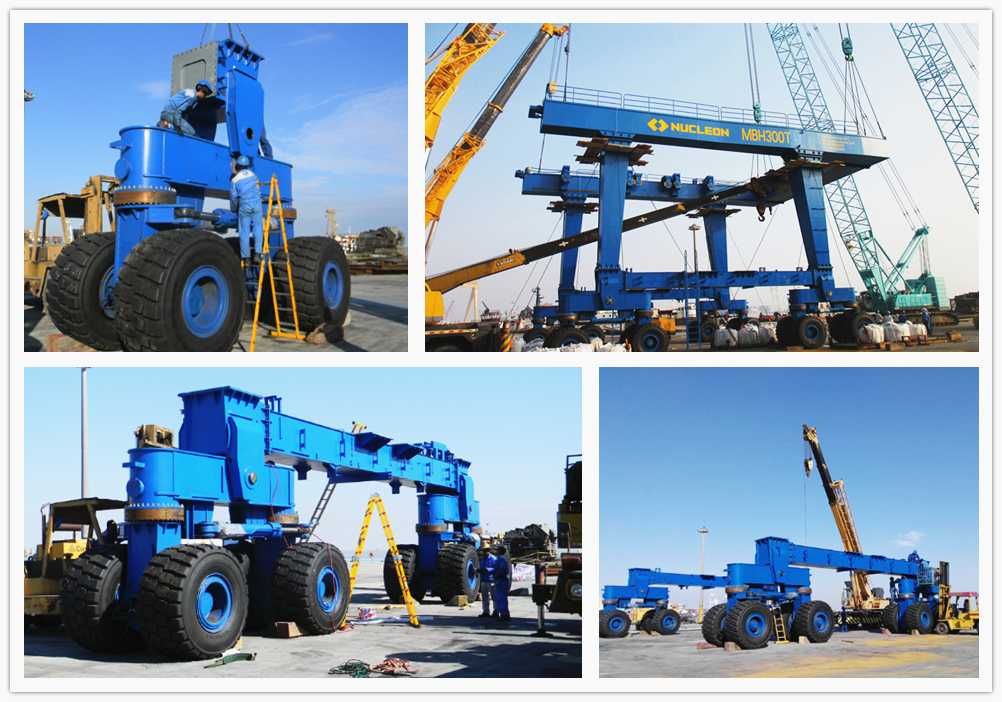

MBH Mobile Boat Handing Machine includes main structure, traveling wheel block, hoisting mechanism, steering mechanism, hydraulic transmission system, electric control system, the main structure for the “U”type , it can transfer the boat which the height surpass its height.

Main Parameter
  • Lifting weight:10~800t
Nucleon(Xinxiang)Crane Co.,Ltd,
  • Certification Nucleon Crane has been audited by many international authority such as CE/ISO/SGS/BV/GOST/RTN/TUV and so on.
  • Packaging Details Our marine crane normal export package:Wooden pallet,Rack wooden,20' and 40' container,Nude or According to your demands.
  • Delivery Detail Shipped in 20 days after payment.
Mobile Boat Handing Machine Advantage:

1. It adopts the soft and firm belt to lift the boat, yacht; it will never hurt the surface.

2. It also can put the boat in sequence quickly with small gap between each two boat.

3. Powered by its own diesel generator, the whole system is hydraulic driven;

4. The lifting points are adjustable, many points could be lifted at the same time.

5. Rubber-tyred traveling mechanism makes an easy traveling, with the functions of oblique movement, Ackerman steering and rotate at the same place. With a 4% climbing ability when full load.

6. The main beam and end beam are connected by hinge form, which eliminate the partial stress due to the bad road condition.




1. Capacity: 10~800t

2. Ground specific pressure: 6.5~11.5kg/cm2

3. Grading ability: 2%~4%

4. Lifting speed: Full load: 0~2m/min; Non-load: 0~5m/min

5. Running speed: Full load: 0~20m/min; Non-load: 0~35m/min

6.Working ambient temperature: -20 ℃~+50 ℃
1. For the crane traveling, it can move in diagonal direction, it also can steer in 90 degree or do pivot steering,it also can put the boat in any designated position according to requirements

2. Main girder can adjust the span according to the boat width for handling different width boat.

3. Low expenses, high performance, easy to operate and maintenance etc

4. Low cost on the daily operation, it adopts the soft&firm belt to ensure no harm to the boat when hoisting

5. It can make the boat in order quickly, it also can adjust the gap between each boat according to different condition, reducing the wasted space
