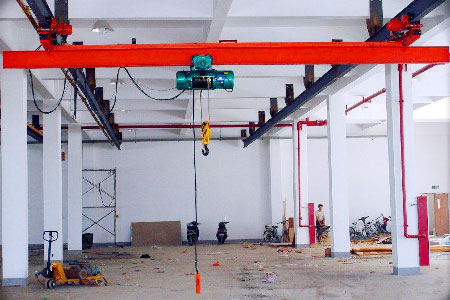

LXB type explosion proof electric single girder suspension overhead crane

LXB type explosion-proof electric single girder suspension crane is matching for HB-electric hoist,it is a small light lifting, with a reasonable structure, beautiful appearance, explosion-proof performance and so on.

Main Parameter
  • Lifting weight:0.5~10t
  • Work class:A3
Nucleon(Xinxiang)Crane Co.,Ltd,
  • Certification Nucleon Crane has been audited by many international authority such as CE/ISO/SGS/BV/GOST/RTN/TUV and so on.
  • Packaging Details Our marine crane normal export package:Wooden pallet,Rack wooden,20' and 40' container,Nude or According to your demands.
  • Delivery Detail Shipped in 20 days after payment.
LXB type explosion-proof electric single girder suspension crane is matching for HB-electric hoist,it is a small light lifting, with a reasonable structure, beautiful appearance, explosion-proof performance and so on. The rated weight is 1T-20T, working level is A3, generally depending on the explosion-proof requirements are divided into the gas explosion-proof BT4,CT4 and coal safety explosion-proof type.


Lift Capacity

0.5~10

Explosion Proof Grade

ExdII BT4/Exd II CT4

Working Class

A3

Power Source

380V~415V 50HZ/60HZ 3PH

Crane traveling mechanism

Traveling speed

20m/min

Motor

0.5~3t

3~22.5m

BZDY12-4/0.4KW*2

5t

3~16m

5t

16~22.5m

BZDY21-4/0.8KW*2

10t

3~22.5m



Reasonable design for lower height of warehouse

Favorable performance

Safe and reliable traveling

Low noise,commodious cabin and good view
