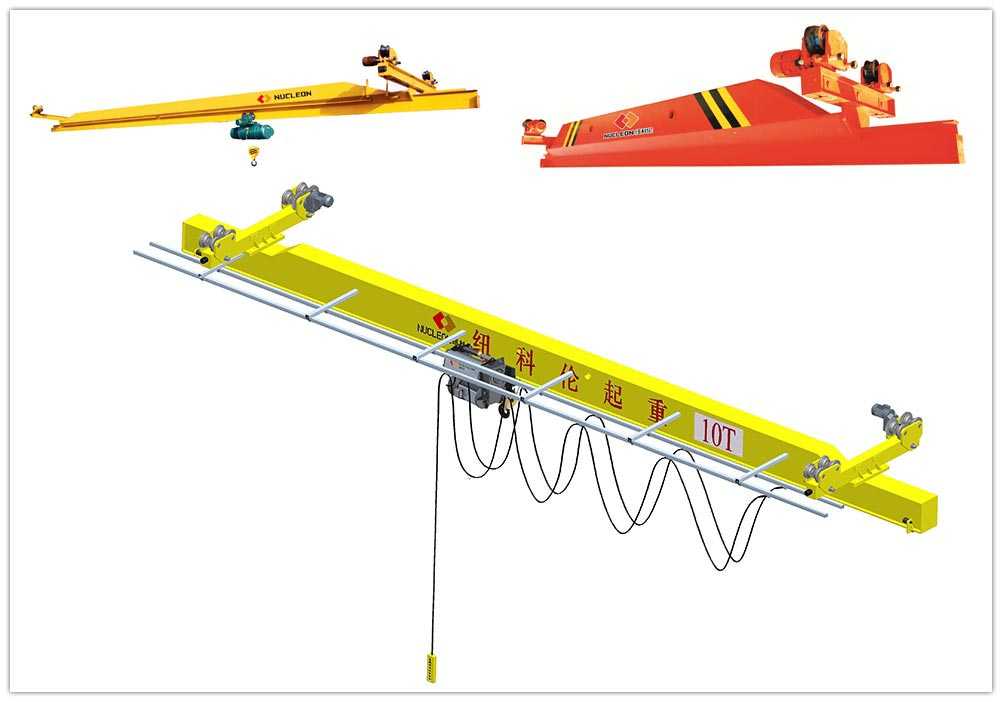

LX Electric Single girder suspension Overhead Crane

LX model electric single girder suspension crane is designed strictly according to national standard and equipped with C4

Main Parameter
  • span:3~16m
  • Lifting weight:0.5~10t
  • Lifting height:6~18m
  • Work class:A3~A5
Nucleon(Xinxiang)Crane Co.,Ltd,
  • Certification Nucleon Crane has been audited by many international authority such as CE/ISO/SGS/BV/GOST/RTN/TUV and so on.
  • Packaging Details Our marine crane normal export package:Wooden pallet,Rack wooden,20' and 40' container,Nude or According to your demands.
  • Delivery Detail Shipped in 20 days after payment.
LX model electric single girder suspension crane is designed strictly according to national standard and equipped with C4. MD electric wire rope hoist, thus it is a kind of small light duty crane with rail track. The main part of this suspension crane is main beam, cross beam, electric trolley, electric parts, and lifting system, etc.

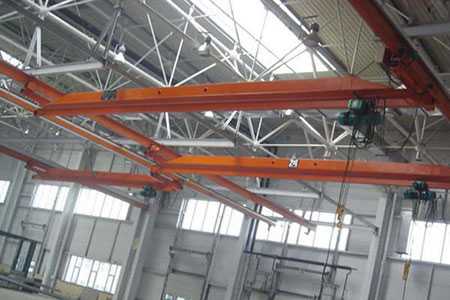

Basic capacity is 0.5t~10t, Span 3~16m, working duty is A3~A4, and working temperature is  -20 ℃~40℃, while it is forbidden in the environment such as combustible. explosive or corrosive environment, this crane is widely applied in places such as machines workshop, assembling workshop, industrial orel factory, storehouses, and material handling plant.

Control mode
Pendent line with push button or remote control or both


Lifting capacity(t)

0.5

1

2

3

5

10

Traveling speed(m/min)

20 ,30

20 ,30

20 ,30

20 ,30

20 ,30

20 ,30

Motor

type

ZDY112-4

ZDY112-4

ZDY112-4

ZDY112-4

ZDY112-4

ZDY112-4

Power(kw)

0.4×2

0.4×2

0.4×2

0.4×2

0.4×2

0.8×2

Electric hoist

type

CD1   MD1 wire rope electric hoist

Lifting height

6m, 9m, 12m, 18m

Speed(m/min)

Lift

8,   8/0.8

7, 7/0.7

Travel

20   30

Span(m)

3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16

Working class

A3-A5

Wheel diameter(mm)

130

150

1. Compact structure.

2. Good ragid.

3. Sensitive operation,

4. Low noise.

5. No pollution,

6. Safe and reliable performance
