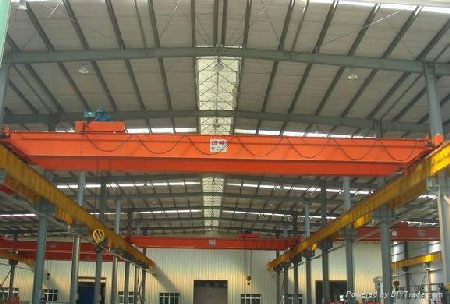

LH Electric Hoist Double Girder Overhead Crane

LH electric hoist overhead crane is mainly used in machining workshop, metallurgical auxiliary workshops, warehouses, material, power etc to transfer, assembly, maintenance and handling operations.

Main Parameter
  • span:10.5~31.5m
  • Lifting weight:3~20t
  • Lifting height:6~18m
  • Work class:A3~A5
Nucleon(Xinxiang)Crane Co.,Ltd,
  • Certification Nucleon Crane has been audited by many international authority such as CE/ISO/SGS/BV/GOST/RTN/TUV and so on.
  • Packaging Details Our marine crane normal export package:Wooden pallet,Rack wooden,20' and 40' container,Nude or According to your demands.
  • Delivery Detail Shipped in 20 days after payment.

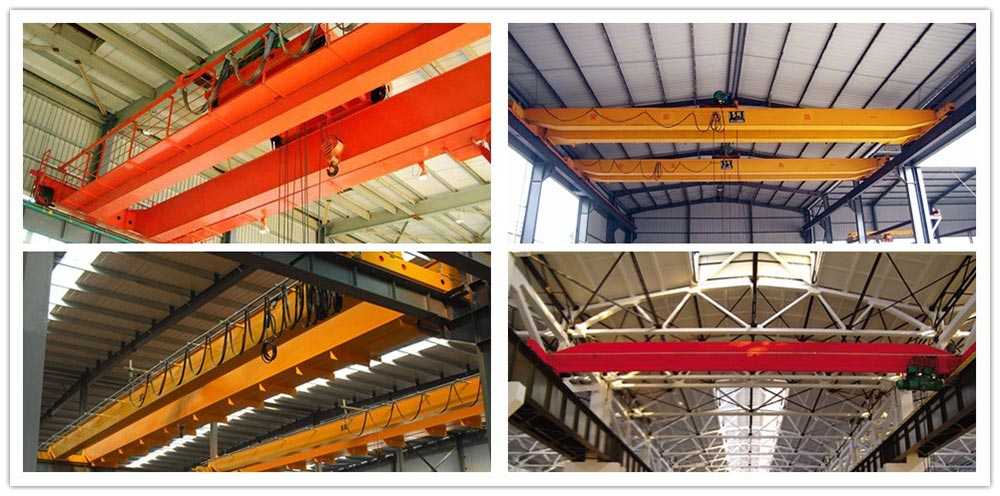

LH electric hoist overhead crane is mainly used in machining workshop, metallurgical auxiliary workshops, warehouses, material, power etc to transfer, assembly, maintenance and handling operations. It can also replace ordinary double-beam bridge crane. used in light and textile industry and food industry. The work type is light and intermediate. the working environment temperatureis -20-40 ° 3. prohibited working in flammable. explosive. corrosive environment.

There are two control models: Ground control and Cabin control; for cabin control, it could be open type and close type. and installed as per actual working need on the left or right side; Driver could enter the cabin by side. rear or top, which depends on different users' requirement.

Our company mainly produce this electric hoist double girder overhead crane with capacity under 63ton.


Lifting capacity (t)

3

5

10

16

20

Span (m)

10.5-31.5

Control type

Cabin control or Pendent ground control

Lifting height (m)

6-18

9-18

6-18

Speed

(m/min)

Lifting

8,  8/0.8

7, 0.7/7

3.5, 0.35/3.5

6, 0.6/6

Trolley

20

Crane

Pendent

20 (30)

20

Cabin

20 (30)

20

Motor

Lifting

ZD132-4/4.5

ZDS132-0.4/4.5

ZD141-4/7.5

ZDS1- 0.8/7.5

ZD151-4/13

ZD151-4/13

ZD152-4/18.5

Trolley

ZDY121-4

0.8x2

ZDY121-4

0.8x2

ZDY121-4

0.8x2

ZDY121-4

1.5x2

ZDY122-4

1.5x2

Crane

Pendent

//

//

//

//

//

Cabin

//

//

//

//

//

Electric Hoist

CD1 / MD1

Work duty

A3, A4 A5

Power supply

380V, 50Hz, 3-phase or

 according to your demand

Recommended rail (kg/m)

38-43

Max. wheel loading (Kn)

38.6-124.3

51.5- 124.3

80.8-178

110-225.4

132.6-255.8

Weight

(t)

Pendent control

5.2- 19.9

5.7-21.8

7.2-25.2

8.3-26.9

11.3-30.1

Cabin control

6- 20.7

6.5-23.1

8.0-26.5

9.1-28.2

12.1-31.4



1. Compact structure.

2. Low head room building height,

3. Light self weight

4. Small wheel pressure

5. Low noise. low cost maintenance;
