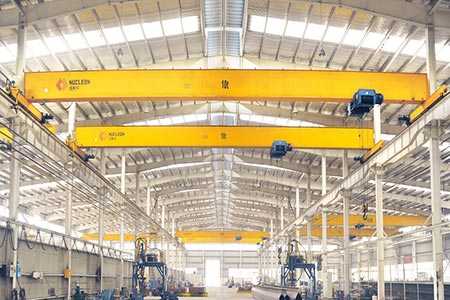

LDP type electric single girder Overhead Crane

LDP type electric single girder crane is a super low clearance light crane, electric hoist on one side of the main beam, increasing hook service space, can reduce the factory height and cost.

Main Parameter
  • span:3~16m
  • Lifting weight:0.5~5t
  • Lifting height:6~18m
  • Work class:A3~A5
Nucleon(Xinxiang)Crane Co.,Ltd,
  • Certification Nucleon Crane has been audited by many international authority such as CE/ISO/SGS/BV/GOST/RTN/TUV and so on.
  • Packaging Details Our marine crane normal export package:Wooden pallet,Rack wooden,20' and 40' container,Nude or According to your demands.
  • Delivery Detail Shipped in 20 days after payment.
LDP type electric single girder crane is a super low clearance light crane, electric hoist on one side of the main beam, increasing hook service space, can reduce the factory height and cost. The product with large trolley track distance, smooth operation, compact structure, good rigidity, sensitive operation, low noise, tsafe, reliable, beautiful shape, widely used in the working environment temperature-20℃~+40℃, and the workshop's headroom is low and other places. Its rated load is 3T~10T span is 7.5M~22.5M, working grade is A3, A4 .


Lifting capacity (T)

0.5,1,2,3T

5T

Span(M)

3-16M

Crane traveling mechanism

Traveling speed(m/min)

20,30

20,30

Motor

Model

ZDY112-4

ZDY121-4

Power(kw)

0.4×2

0.8×2

Rotation (m/min)

1380

1380

Lifting mechanism

&traveling mechanism

Electric hoist model

CD1/MD1

CD1/MD1

Lifting speed (m/min)

8,8/0.8

8,8/0.8    7,7/0.7

Lifting height (m)

6 ,9 ,12, 18

9,12,18

Traveling speed (m/min)

20(30)

20(30)

Motor

Taper Squirrel-cage type

Taper Squirrel-cage type

Work duty

A3-A5

Power supply

380V 50HZ three phase

Wheel diameter

130mm

130/150mm

 section rail

120a-132c

120a-132c  125a-163c

Tight dimension

Low building headroom

Light dead and light wheel load

High quality with good appearance
