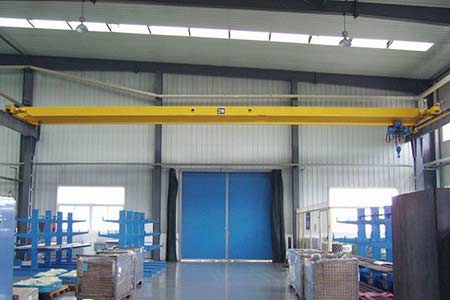

LD Electric Single girder Overhead Crane

This kind of crane is together with CD and MD wire rope electric hoist, with lifting capacity 1t~20t, span 7.5m~28.5m, working duty A3~A4, and working temperature -20 ℃~40℃.

  • LD Electric Single-girder Crane
Main Parameter
  • span:7.5~28.5m
  • Lifting weight:1~20t
  • Lifting height:6~30m
  • Work class:A3~A5
Nucleon(Xinxiang)Crane Co.,Ltd,
E-mail：sale@nucleoncranes.cn
Tel：+86-373-3075268
  • ● Certification Nucleon Crane has been audited by many international authority such as CE/ISO/SGS/BV/GOST/RTN/TUV and so on.
  • ● Packaging Details Our marine crane normal export package:Wooden pallet,Rack wooden,20' and 40' container,Nude or According to your demands.
  • ● Delivery Detail Shipped in 20 days after payment.
LD electric single girder overhead crane is a kind of small and light duty lifting equipment, with the feature of reasonable structure and strong ragid; This kind of crane is together with CD and MD wire rope electric hoist, with lifting capacity 1t~20t, span 7.5m~28.5m, working duty A3~A4, and working temperature -20 ℃~40℃.

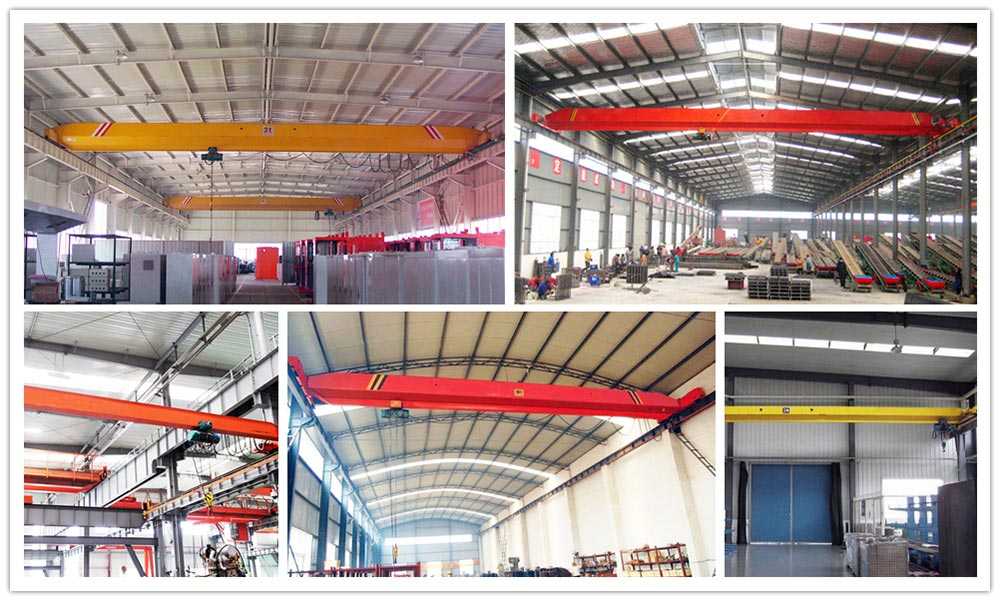

This single girder overhead crane. also named bridge crane or EOT crane. widely used in plants, warehouse. material stocks to lift goods, while this crane is prohibited to use in the combustible. explosive or corrosive environment.

About the crane control methods, there are two options: ground or operational room which has open model closed model and can be installed on the left or right side according to the practical situation. And the direction of entering the gate has two forms, sideway and ends in order to satisfy the users, choice under different conditions.


Lifting capacity (T)

1,2,3,5,10T

16,20T

Span

7.5m~28.5m

Crane travelling mechanism

Travelling speed(m/min)

20

30

45

60

75

20

30

45

60

75

Reducer ratio

58.78

39.38

26.36

19.37

15.88

58.78

39.38

26.36

19.37

15.88

Motor

Model

ZDY21-4

ZDY21-4

ZDY122-4

ZDY131S-4

ZDY112L1-4

Power (kw)

2×0.8

2×1.5

1.5×2

2.2×2

2.2×2

Rotation (m/min)

1380

1380

Lifting mechanism

Electric hoist model

CD1/MD1

MD1/HC

Electric Hoist

Travelling Mechanism

Lifting speed (m/min)

8,8/0.8 7,7/0.7

3.5 3.5/0.35

Lifting height (m)

6 ,9 ,12, 18, 24, 30

12,18,24,30

Travelling speed (m/min)

20(30)

20(30)

Motor

Taper Squirrel-cage type

Taper Squirrel-cage type

Work duty

A3-A5

Power supply

380V 50HZ three phase

Wheel diameter

270mm

370mm

Width of trail

37-70mm

37-70mm

1. New structure design

2. Good production technology

3. Flexible and steady operation

4. Safety and reliable function
