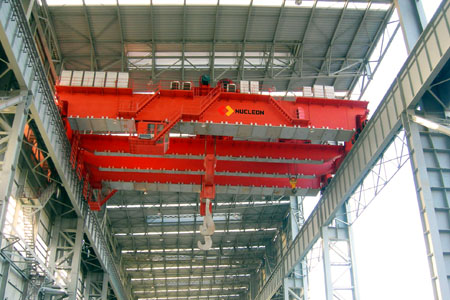

Foundry Overhead Crane

Foundry overhead crane is one of the main equipments in the continuous casting technology of steelmaking.

Main Parameter
  • Lifting weight:5~320t
  • span:10.5~31.5m
  • Lifting height:12~32m
  • Work class:A7
Nucleon(Xinxiang)Crane Co.,Ltd,
  • Certification Nucleon Crane has been audited by many international authority such as CE/ISO/SGS/BV/GOST/RTN/TUV and so on.
  • Packaging Details Our marine crane normal export package:Wooden pallet,Rack wooden,20' and 40' container,Nude or According to your demands.
  • Delivery Detail Shipped in 20 days after payment.
The overall structure of foundry crane has the following forms: two girder and two rail, four girder and four rail, and four girder and six rail, etc. The form of two girder and two rail, four girder and four rail, are mainly used for middle and large-tonnage foundry crane; the form of four-girder and six-rail and two trolley is mainly used for extra large-tonnage foundry crane.
1.Lifting weight: 5t,10t,16/3.2t,20/5t,32/5t,50/10t,100/32t,125/32t,125/32t,160/32t,180/50t,200/50t,225/50t,240/80t,280/80t,320/80t,

2.Span:10.5m-31.5m

3.Work duty: A7

4.Lifting height:12m-32m

5.Work temperature:-10℃~+60℃

6.The relative humidity is no more than 50% when the temperature is +40℃
